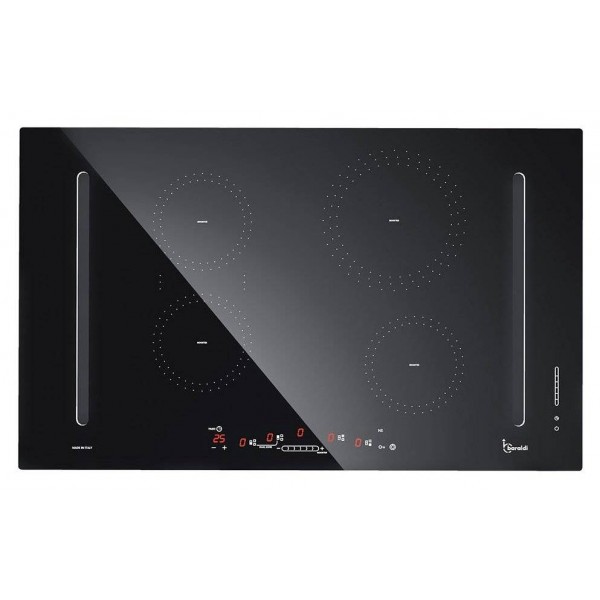

Baraldi DIAMOND BRIDGE Induction hob cm. 83 - with integrated hood 700 m3/h - black glassceramic

Balradi DIAMOND BRIDGE 01DIM01EBL83 - Induction hob cm. 83 - with integrated hood 700 m3/h - black glassceramic

The new induction hob with the integrated hood. Easy, safe, effective, with 4 fires and 10 levels of power. Timer, system of recognition of presence of the pot, block of controls for children's safety, surface temperature indicator and auto shutdown are some of the functions of this evolved product. Aspiration to the sides of the stove through two wounds to capture fumes, vapors and smells. Six levels of engine regulation with the possibility of a timer. The system comes almost 700 m3/h flow rate with a flow rate of 8,5 m/s, the highest available. With an exclusive patented mechanism Easy Lift the glass top lifts completely for easy and immediate cleaning of all the hood from the food or liquid parts that can fall. Without having to disassemble or remove anything you can clean with maximum simplicity and speed.

Floor and hood can be installed in a contained space having a total height of only 25 cm. The latest cooking plan has the Dual Zone function for large pots. The compact motor hood can be connected to a pipe for the evacuation of the smokes on the outside or used with a long-lasting anti-odor filter module with the air that is filtered back into the kitchen. With 2 double pistons the glass opens and remains in the desired position and closes down smoothly without the risk of falling.

CHARACTERISTICS
Code: 01DIM01EBL83
Description: DIAMOND BRIDGE
Finish: black ceramic top, 18/8 stainless steel structure (Aisi 304)
Product size LxP: 830x510 mm
Minimum recessed dimensions LxP: 805x490 mm
Induction areas: 4
LED Display
Hearing signs
Commands: 9-level backlit venting + Booster
Maximum power: 6800 W
Voltage: 240-380 V
Frequency: 50/60 Hz

FUNTING COTTURA
Independent timer for each cooking area
Indication for each cooking area
Temperature control protection
Auto shutdown if not used for more than 10 sec.
Quick boiling function (Booster)
Dual Zone ( Bridge Function)
Residual heat indicator
Adjustable Power Limit
Safety sensors for pot and temperature
Children's safety switch

ZONA COTTURA POWER
3 cooking area with 145 mm and 1600W power - Booster
1 cooking area with 200 mm and 2000W power - Booster

CHAPTERISTICS
Version aspirant or filtering (for the filter version you need to buy separately between the Accessories filter kit 02KITFILDIA or filter kit with sanitizing 02KITFILDIARO)
Code: 01DIM01EBL83
Description: DIAMOND BRIDGE
Controls: backlit touching
Functions: 6 speeds with intensive, timer, automatic shutdown
Suction: On both sides of the floor with double wound
Output hole: 220x90 mm with fittings (included: 2 Rectangular vertical curves - 1 Rectangular tube of 1,2 meters - 1 Horizontal rectangular curve - 1 Rectangular-round reduction)
Anti-odor filter included: aluminium
Max height: 25 cm.

CHAPTER PRICES
Consumption class: A
Maximum suction capacity: 700 m3/h
Maximum pressure: 590 Pa
Maximum power: 170 W
Annual consumption: 55 kWh/a
Filter efficiency: C
Maximum roughness: 65 dB(A)

ACCESS (purchase separately in the section at the bottom of the page)
- Filter kit with AirO' Sanifier (02KITFILDIAIRO)
- Filter kit with Hi-filter (02KITFILDIA)
- Plastic grid for exterior (02TP841/D)
- Stainless steel grill (02GRIFILDIA)
- Rectangular pipe joint (02TP827/D)

ORDER AND PULISHING IN CUISINE
EASY LIFT is the exclusive and patented system that allows you to fully lift the induction hob with the integrated hood. This way, without having to disassemble or remove any item, you can easily and quickly clean the product in all its parts.

ONLY MOTORS
New engines up to class A+ are the high-efficiency and low-noise series that also give the possibility on different models to have the removable version of the hood and can be installed up to 6 meters away, both inside and outside the house.
