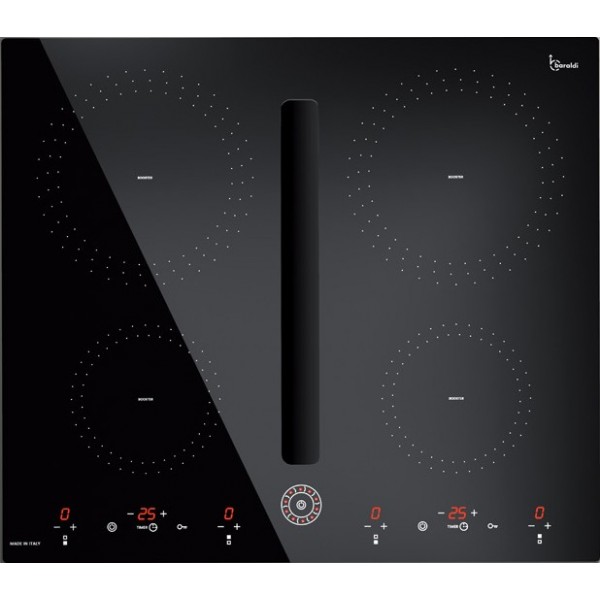

Baraldi DIAMOND 60 Induction hob cm. 60 - with integrated hood 700 m3/h - black glassceramic

Baraldi DIAMOND 60 01DIM03EBL58 - Induction hob 60 cm - with integrated hood 700 m3/h - black glassceramic

Diamond 60 is the smallest induction line with integrated hood. Thanks to the patented exclusive mechanism Easy Lift, the glass is lifted completely for easy and immediate cleaning of all the hood from the food or liquid parts that can fall. Easy, safe and effective with 4 fires and 10 levels of power. Timer, system of recognition of presence of the pot, block of controls for children's safety, surface temperature spy and auto shutdown are some of the functions of these developed products. Linear aspiration through wounding to capture fumes, vapors and smells. Six levels of engine regulation with the possibility of a timer, The system reaches almost 700 m3/h flow rate with an air flow rate of 8,5 m/s, the highest available today.
Even the 60 version can be installed in a contained space having a height of only 25 cm. The stove has the Dual Zone function for large pots.
The hood can be used in a filter or aspiring version. The top is made of black ceramic glass and 18/8 stainless steel structure.

CHARACTERISTICS
Code: 01DIM03EBL58
Description: DIAMOND 60
Finish: black ceramic top, 18/8 stainless steel structure (Aisi 304)
Product size LxP: 580x510 mm
Minimum recessed dimensions LxP: 560x490 mm
Induction areas: 4
LED Display
Hearing signs
Commands: 9-level backlit venting + Booster
Maximum power: 7200 W
Voltage: 240
Frequency: 50/60 Hz

FUNTING COTTURA
Independent timer for each cooking area
Indication for each cooking area
Temperature control protection
Auto shutdown if not used for more than 10 sec.
Quick boiling function (Booster)
Residual heat indicator
Adjustable Power Limit
Safety sensors for pot and temperature
Children's safety switch

ZONA COTTURA POWER
2 cooking areas with 145 mm and 1600W power - Booster
2 cooking areas with ø 200 mm and power 2000W - Booster

CHAPTERISTICS
Version aspirant or filtering (for the filter version you need to buy separately between the Accessories filter kit 02KITFILDIA or filter kit with sanitizing 02KITFILDIARO)
Code: 01DIM03EBL58
Description: DIAMOND 60
Controls: backlit touching
Functions: 6 speeds with intensive, timer, automatic shutdown
Suction: On central wounding
Output hole: 220x90 mm with fittings (included: 2 Rectangular vertical curves - 1 Rectangular tube of 1,2 meters - 1 Horizontal rectangular curve - 1 Rectangular-round reduction)
Anti-odor filter included: aluminium
Max height: 27 cm.

CHAPTER PRICES
Consumption class: A
Maximum suction capacity: 700 m3/h
Maximum pressure: 590 Pa
Maximum power: 170 W
Annual consumption: 55 kWh/a
Filter efficiency: C
Maximum roughness: 65 dB(A)

ACCESS (purchase separately in the section at the bottom of the page)
- Filter kit with AirO' Sanifier (02KITFILDIAIRO)
- Filter kit with Hi-filter (02KITFILDIA)
- Plastic grid for exterior (02TP841/D)
- Stainless steel grill (02GRIFILDIA)
- Rectangular pipe joint (02TP827/D)

ORDER AND PULISHING IN CUISINE
EASY LIFT is the exclusive and patented system that allows you to fully lift the induction hob with the integrated hood. This way, without having to disassemble or remove any item, you can easily and quickly clean the product in all its parts.

ONLY MOTORS
New engines up to class A+ are the high-efficiency and low-noise series that also give the possibility on different models to have the removable version of the hood and can be installed up to 6 meters away, both inside and outside the house.
