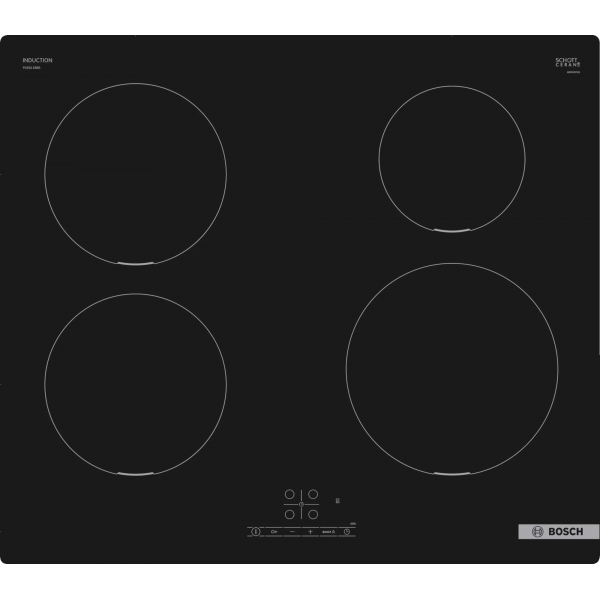

Bosch PUE611BB5D Series | 4 Induction hob 60 cm Black, without profiles

4 cooking areas with recognition
automatic pot
• Without frame
• PowerBoost function for each cooking area
TouchControl front controls
• Electronic display
• Electronic adjustment at 17 levels
• Count-down timer: end timer for cooking
each single zone
• QuickStart function: allows quick
selection of cooking power
• ReStart function: restore settings
cooking in case of accidental shutdown
safety shutdown
• Child safety
• “Energy Tutor” function to limit
1 kW electrical absorption
• Digital residual heat indicator

Technical specifications

60 cm: comfortable space for 4 pots or pans.

Flexibility of cooking areas

left front cooking area: 180 mm, 1.8 kW (max. capacity 3,1 kW)
cooking area, rear left: 180 mm, 1.8 kW (max. capacity 3,1 kW)
cooking area, right back: 145 mm, 1.4 kW (max. capacity 2.2 kW)
right front cooking area: 210 mm, 2,2 kW (max. capacity 3,7 kW)

Comfort

TouchSelect sensor control: control and setting with printed +/- touch buttons.
17 power levels: precise setting of 17 power levels (9 main and 8 power levels).
extinguishing

The timer of the cooking area integrated into the stove can be activated at any time (even during cooking) to determine exactly when the cooking area is required. off." style="text-decoration:underline;color:#f60;">Timer : turn off the cooking area at the end of the set time (e.g. for hard eggs).
Countdown

The timer of the cooking area integrated into the stove can be activated at any time (even during cooking) to determine exactly when the cooking area is required. off." style="text-decoration:underline;color:#f60;">Timer : at the end of the set time (e.g. for pasta) sounds an alarm.

Save time and efficiency

PowerBoost for all cooking areas: use 50% extra power when cooking, for example water, compared to the highest standard power level offered.
QuickStart: When switching on, the plan automatically selects the cooking area with the lash (placed in the switched state).
ReStart: In case of involuntary shutdown, restore all previous settings by turning the plan back in 4 seconds.
Quick Stop: Fast deactivation of the cooking area with only one long touch.

Design

design without frame

Security

Residual heat indicator at 2 stages for each cooking area: indicates which cooking areas are still hot or hot.
children safety: prevents unintentional activation of the stove.
main switch: turn off all cooking areas by pressing the button.
safety shutdown: for security reasons, the heating is switched off after a set time without additional user interaction (setting).

Installation

device size (A x L x P): 51 x 592 x 522 mm
installation size (A x L x P): 51 x 560 x 490 - 500 mm
min. thickness worktop: 16 mm
energy consumption: 3.7 kW
PowerManagement: limits the maximum power if necessary (depending on the fuse of protection of the electrical system).
connection cable, 1.1 m with plug: plug & play, you do not need a specialist (electricist) for installation.

Technical specifications

Generally

Induction hob type hob
Induction hob with separate stove control
Width 60 cm
Number of cooking areas available at the same time 4
Size of cooking areas 1 x 14,5 cm O, 1 x 21,0 cm O, 2 x 18,0 cm
Power of cooking areas 1 x 1,3.4 (2.2) kW, 1 x 2,2 (3,7) kW, 2 x 1,8 (3,1) kW
Basic surface material of glassceramics
Frame type without frame
Color Black
Energy consumption for cooking floors 175,0 Wh/kg

Design

Surface Material Black
Built-in construction
Design line with U facet
Number of electric cooking areas 4
Frame design with U veneer
Installation type Incasso
Number of cooking areas available at the same time 4

Size and weight

Device dimensions (mm) 51 x 592 x 522 mm
Minimum niche height (mm) 490 mm
Max. Height niche (mm) 500 mm
Minimum niche width (mm) 560 mm
Maximum niche width (mm) 560 mm
Niche depth (mm) 51 mm
Height of the luminaire above the working plane 6,0 mm
