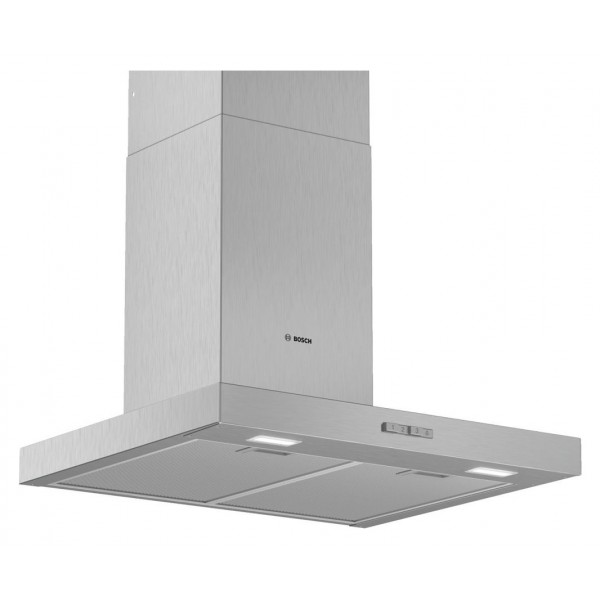

Bosch DWB64BC50 Series 2 Suction cup cm 60 - stainless steel

Suction cup wall Bosch DWB64BC50 - stainless steel
Exhaust air flow: up to 340 m3 / h guarantees an optimal climate in the kitchen
Cleaners: easy selection of desired power level with mechanical control
Silent: the best extraction performance with low noise

Technical data
- Noise values according to EN 60704-3 and EN 60704-2-13 max. Normal discharge air operation at the stadium: 63 dB (A) re 1 pW (50 dB (A) re 20 μPa sound pressure)
- Noise value with recirculation mode:
max. Normal level: 66 dB (A) re 1 pW (53 dB (A) re 20 μPa sound pressure)
Max. Fan power 365 m3 / h for exhaust air operation according to EN 61591
- Circulating air flow:
max. Normal operation: 197 m3 / h

- Energy efficiency class: D (on an energy efficiency assessment scale from A++ to D)
- Average energy consumption: 53.1 kWh / year *
- Efficiency class of fan: E *
- Fat filter efficiency class: C
- Light efficiency class: A
- Rumourity min./max. Normal level: 49/63 dB
- Uniform and bright lighting with 2 1.5 W LED modules.
- Illumination: 99 lux
- Color temperature: 3500 K

Comfort
- Button switches
- 3 power levels
- Optional exhaust or recirculation mode

Environment and safety
- Metal grease filter, dishwasher safe

Dimensions and other technical characteristics
Air exhaust device dimensions (AxLxP): 635 - 965 x 600 x 500 mm
Exhaust air output Ø 150 mm (Ø 120 mm included)
Circulating Air Device Size (AxLxP): 635-1075 x 600 x 500 mm
Device size Air circulation with Air circulation module CleanAir (AxLxP): 703 x 600 x 500 mm - Mounting up external channel
833 - 1163 x 600 x 500 mm - Mounting on internal channel
Connected total load: 100 W
Connection cable length: 1.3 m with plug

- For wall mounting via electric plates
- Recirculation mode requires an original equipment package or a CleanAir module (optional)
