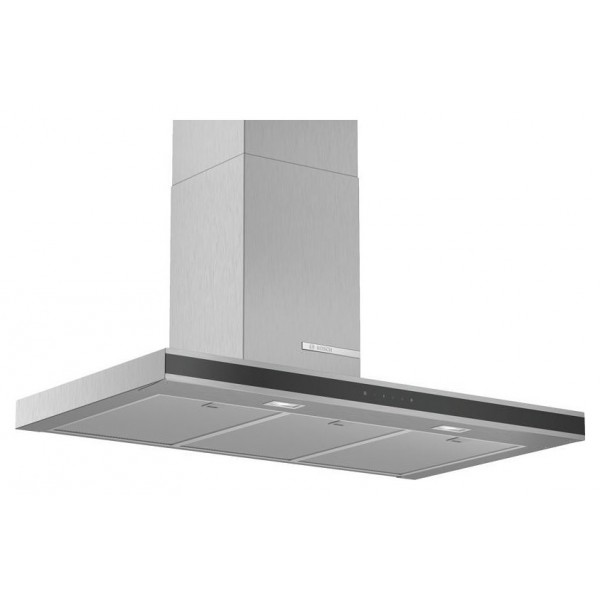

Bosch DWB96FM50 Series 4 Wall-mounted hood cm 90 - stainless

Technical information
- Electrical absorption: 220 W
- Current: 10 A
- Voltage: 220 - 240 V
- Frequency: 50 - 60 Hz
- Electrical connection cable 1.3 m
- Air expulsion capacity: 360 m3/h with normal operation, max. 580 m3/h with intensive stage in accordance with EN 61591
- Air expulsion capacity 360 m3/h with max operation. according to DIN/EN 61591
- Maximum suction capacity: 360 m3/h according to DIN/EN 61591
- Air expulsion capacity: with normal operation 360 m3/h, intensive 580 m3/h according to EN 61591
- Rumourity according to EN 60704-3 and EN 60704-2-13 air expulsion: Max. normal position: 60 dB(A) re 1 pW (48 dB(A) re 20 μPa sound pressure)
- Rumourity according to EN 60704-3 and EN 60704-2-13 air expulsion:
- Max. normal position: 60 dB(A) re 1 pW (48 dB(A) re 20 μPa sound pressure).
- Intensive: 70 dB(A) re 1 pW (58 dB(A) re 20 μPa sound pressure)
- Max. extraction capacity: 580 m3/h
- extraction capacity in recirculation mode:
- Max. normal use: 280 m3/h
- Intensive: 350 m3/h
- Rumourity in recirculation mode:
Max. normal use: 71 dB(A) re 1 pW (59 dB(A) re 20 μPa sound pressure)
Intensive: 75 dB(A) re 1 pW (63 dB(A) re 20 μPa sound pressure)

Dimensions
- Expulsion mounting dimensions (AxLxP): 635 - 965 x 900 x 500 mm
- Recirculation mounting dimensions (AxLxP): 635 - 1075 x 900 x 500 mm
- Recirculation hood size with CleanAir module (AxLxP): 833 - 1163 x 900 x 500 mm
- Recirculation operating dimensions with the CleanAir module (AxLxP):
703 x 900 x 500 mm - mounting with an external fireplace
833 - 1163 x 900 x 500 mm - mounting with internal fireplace
