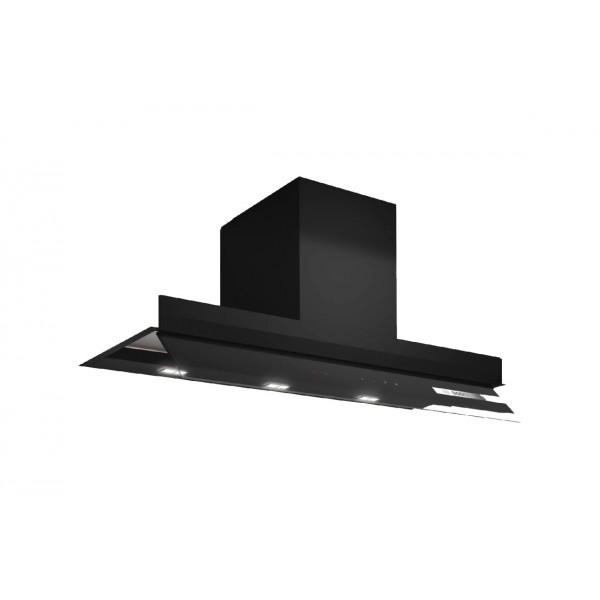

Bosch DBB97AM60 Series | 6 recessed hood cm. 90 - black glass

Maximum air recirrculating power with head stage: 652 m3/h
Material of grease filter: awashable stainless steel
Energy efficiency class: B
Estimated annual electrical consumption: 64.7 kWh/year

Dimensions
Height: 340-340 mm
Width: 897 mm
Depth: 298 mm
Distance from the minimum of the electric stove: 430 mm
Distance from the minimum of the gas cooker: 650 mm
Air exit diameter: 150/120 mm
Non-return flow deflator: yes
Electric power cord length: 130 cm
Net weight: 14,5 kg
Max exhaust air device height: 340 mm
Air discharge device height min: 340 mm
Minimum niche width: 860 mm
Maximum niche width: 860 mm
Niche depth: 300 mm

Comfort
Sensor climateControl: no
cookConnect System: no
Extremely silent appliances: no
Intensive level: yes
Remote control: no

Lighting
Number of lights: 3
Total power of bulbs: 9 W
Total light intensity: 517
Lighting type softLight: yes
E_middle(2009/125/EC): 517 lux

Light color via Home Connect: no
EmotionLight Pro: no

Connectivity
Home Connect: no

Optional accessories (contact us for more information)
LongLife recirculation set
Clean Air Standard recirculation set
Clean Air standard odor filter
External Clean Air Plus recirculation set
Long life odor filter
Extension of the fireplace


The optimum fan power for every dimension of the kitchen.
It doesn't matter if you have an open kitchen or a small closed kitchen. We offer the optimal performance of the fan for every type of kitchen. The air should be completely exchanged from 6 to 12 times per hour for a uniformly pleasant environment climate. To this end, the air flow or the performance of the vacuum hood must correspond to the volume of the environment.

Silent: best extraction performance with low noise.

Intensive level: removes strong cooking odors particularly quickly and effectively.

Metal grease filter
Metal grease filters are required for exhaust and recirculation loops to filter fat and other solids from the suction air. To maintain their high level of effectiveness, they should be washed by hand or in the dishwasher approximately once a month. The metal grease filter is included in the supply.
