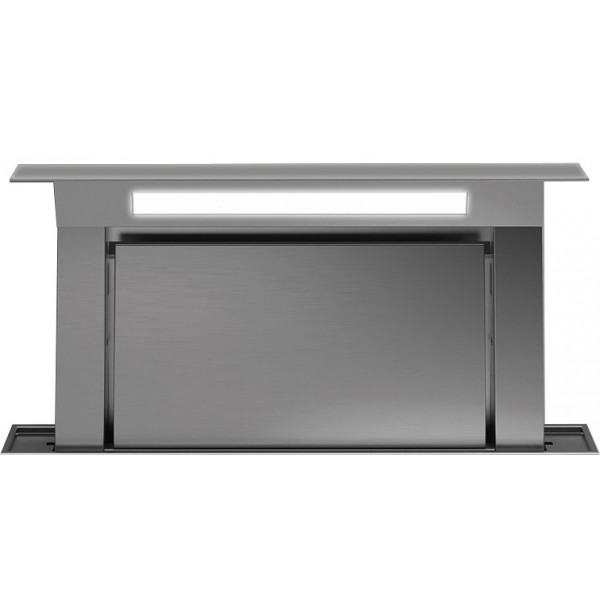

Falmec - Down Draft Worktop 120 Hood - Inox

The Falmec Down Draft WORKTOP 120 stainless hood is made entirely of steel with a scotch brite finish. The unit is integrated into the worktop, behind the cooktop and, when turned off, looks like a simple metal band.
The high-efficiency LED lamp is visible only when the model is in operation.
The' perimeter suction reduces energy consumption and noise.
The "24-hour" option turns the motor on 8 times a day for 60 minutes at the lowest speed, following which a healthy microclimate is maintained in the kitchen.
A metal grease filter protects the duct from oil particles and soot. As additional accessories, a remote control, external motors, as well as extractors of various capacities can be purchased.

DESIGN+ COLLECTION: in search of the perfect hood
A restricted selection of models characterized by exclusive aesthetic and functional solutions. Design+ is Falmec's collection born from different collaborations with established and emerging designers. A continuous and shared "work in progress" that has allowed to create a range that aspires to absolute perfection: in shapes, materials and technologies.

GENERIC FEATURES:
Type of installation: Worktop
Dimensions: 120 cm
Finish: Stainless steel (AISI 304) scotch brite finish
Suction type: Perimeter suction
Type of control: Push-button touch - Remote control optional
Operating speed: 4
Lighting: Led strip
Filters: 2 x Metal filter "Top" - 404x216 mm removable and washable - Optional Carbon.Zeo combined filter, regenerable

TECHNICAL FEATURES:
Gross weight: 52.6 kg
Net weight: 43.2 kg
Volume: 0.43 m³

Packaging dimensions:
Length:1395 mm
Height: 355 mm
Depth: 865 mm

ACCESSORIES OPTIONAL AVAILABLE:
Protective surface wipe stainless steel (box 10 pcs) (KACL.815)
Carbon.Zeo filter (KACL.930)
Remote control (105080053)

COMPATIBLE MOTORS:
> Slim 800 m3/h motor (KACL.784#46F)
- Maximum flow rate 680 m³/h
- Maximum noise level 68 dB(A)
- Maximum pressure (Pa) 490 Pa
- Maximum motor power 239 W
- Energy class B

> Remote attic motor 950 m3/h (KACL.798#41F)
- Maximum flow rate 730 m³/h
- Maximum noise level 68 dB(A)
- Maximum pressure (Pa) 580 Pa
- Maximum motor power 240 W
- Energy class B

> Remote attic motor 1100 m3/h Brushless (KACL.770#41F)
- Maximum flow rate 680 m³/h
- Maximum noise level 66 dB(A)
- Maximum pressure (Pa) 400 Pa
- Maximum motor power 200 W
- Energy class B

> Remote under-roof motor 1300 m3/h (KACL.797#4AF)

>External aspirator 1000 m3/h (KACL.786#41F)

> External exhaust fan 1500 m3/h (KACL.796#4AF)
