Reference: AL400122
EAN:

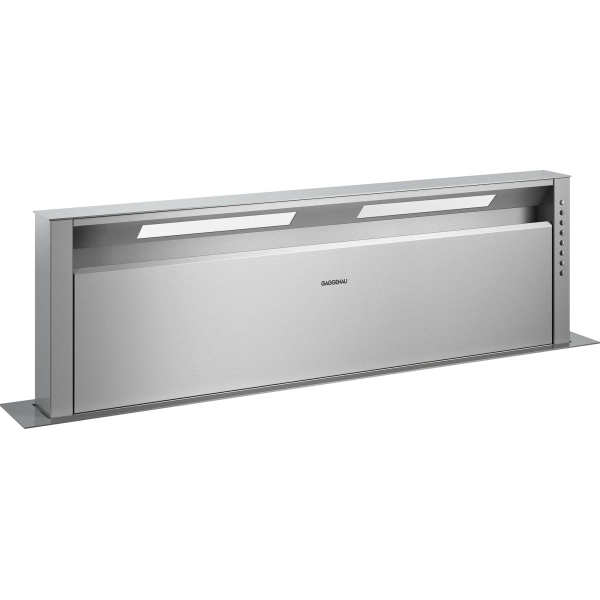

Gaggenau Series 400 Floor suction 120 cm AL400122
Guaranteed security on all purchases
Safe shipping via Espresso Courier
Refund warranty within 30 days
3 levels of electronic control power and intensive operation
Space ventilation, 6 min.
Retarded shutdown, 6 min.
Anti-fat filter saturation indicator.
2 large anti-fat metal filters, easy to remove, dishwasher safe.
Containers for the collection of liquids and fat residues, easy to remove and washable in the dishwasher
White LED light of warm shades (3600 k), dimmable.
Light power 4 x LED light bars 10W.
Lighting 400 lx.
Flexibility in the installation of the engine that can be positioned compared to the device: down, on the front or on the back side.
All options ensure the necessary space and accessibility to the front drawers of the furniture.
It can be combined with all cooking levels of the Vario 400 and 400 Series.
Minimum cooking width: 120 cm.
For an adequate suction performance, you need to install two engines in recirculation mode.
In compliance with the EU 66/2014 European legislation, it is possible to operate the suction centre only in recirculation mode.
For installation it is necessary to order separately the accessories suitable for the configuration chosen.
The recirculation operation is not recommended in combination with the Vario electric grills.
The combination with Vario cooking plans is only possible without the use of the latter with its covers.
Fitted with a maximum power of 18 kW.
The telescopic suction centre must have a dedicated recessed hole separated from the stove.
The scope and stability, in particular in the case of thin work plans, must be supported by appropriate substructures. Consider the weight of the appliance and additional loads.
A top floor distance of at least 50 mm must be guaranteed between the suction centre and the stove. This space must be supported by a reinforcement structure (see dedicated accessories code AA 409 401/431).
Additional instructions for wire installation:
The installation is possible in stone, synthetic or solid wood floors. The thermal resistance and stagnation of the edges of the carving must be respected. For other materials please consult the manufacturer of the work plan.
It is possible to place ovens inside the same furniture where the suction center was also inserted, depending on the type of installation chosen.
Ensure a greater ventilation of the premises if the hood is installed in a room where there is a working fireplace.
Total absorption 65 W.
Connection cable length 1.7 m with Schuko plug.
Data cable length 1.2 m.
 |
 |
|
