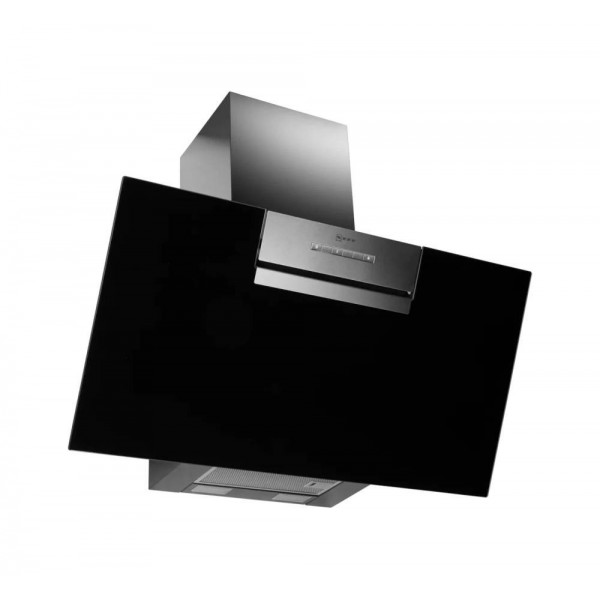

Neff D85IEE1S0 N 30 Wall hood cm 80 glass black

Technical data

Wall hood cm. 80 - black glass - D85IEE1S0 - NEFF

Product sheet
Energy efficiency class: B (in a scale of energy efficiency classes from A+++ to D)
Annual energy consumption (kWh): 59.4 kWh*
Engine energy efficiency class: B
Energy efficiency class of lighting: A
Energy efficiency class of the fat filter: C
Sound power min./max. at normal power level: 48/60 dB (A) re 1 pW*

Main Features
Wall-mounted hood 80 cm
Glass: Transparent glass black
Expulsion or air recirculation operation
For recirculation operation it is necessary to use the CleanAir recirculation kit or the normal recirculation kit
For wall mounting over cooking areas
touchControl for speed control and lighting
Electronic control with softTouch keys
Control with buttons, Bright buttons
3 power levels, 1 adjustable intensive stage via buttons
3 power levels, 1 intensive stage
Intensive level with automatic reset, 6 min
High Performance Double Flow Motor
Condenser motor
2 LEDs from 1.5W
Light intensity: 114 lux
Color temperature: 3500 k
Dishwasher-washable metal grease filters
2 suction areas: front and bottom
Perimetral suction
White Glass Filter Cover
Air expulsion capacity: 399 m3/h with normal operation, max. 669 m3/h with intensive stage according to EN 61591
Air expulsion capacity: with normal operation 399 m3/h, intensive 669 m3/h according to EN 61591
Diameter of pipe 150 mm (Ø 120 mm closed)
Max. extraction capacity: 669 m3/h
With the Clean Air Plus recirculation kit (available as an accessory) your devices reach:
Extraction speed in recirculation mode:
Max. normal use: 349 m3 / h
Intensive: 474 m3 / h
Max. normal use: 69 dB (A) re 1 pW
Intensive: 76 dB (A) re 1 pW
Mounting dimensions (HxWxD): 780-1066 x 800 x 434 mm
Recirculation mounting dimensions (HxWxD): 850-1126 x 800 x 434 mm
Recirculation hood size with CleanAir module (HxLxP): 1016-1306 x 800 x 434 mm
956 x 800 x 434 mm - mounting with an external fireplace
1016-1306 x 800 x 434 mm - mounting with internal fireplace
Electrical consumption: 255 W
Electrical connection cable 1.3 m

Accessories not included
Extension chimney finish steel 150 cm: 5915N0
Extension fireplace finish steel from 100 cm: Z5905N0
Active carbon filter: Z5138X1
Component for installation: Z5895N0

Frontally tilted hood and aspiring high power
Progressive operation: Increases aspiration when maximum power is required!
Energy-saving LED lighting for perfect lighting when cooking.
