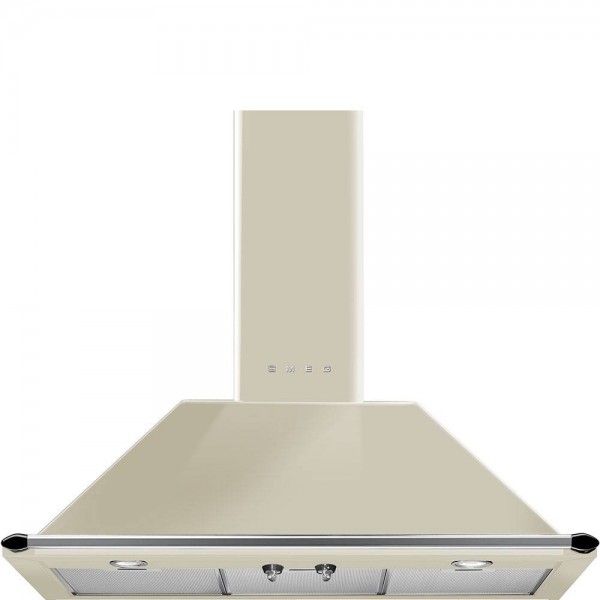

KT90PE Aesthetic Victoria EAN13 8017709211677 Decorative mural Victoria Cream 90cm A

Type

Family: C

Type: Decorative mural

Width hood: 90 cm

Filter: Expulsion

Aesthetics

Finish: Polished

Aesthetic: Victoria

Design: Trapezi

Material: Material Painted

Type: Satinate

Commands

Command control: Hands

Manopole: Victoria

No knobs: 2

Color knobs: Stainless steel effect

Programs / Functions

Speed number: 3

Intensive speed: Yes

Technical characteristics

Number of lights: 2

Type of Light: LED LED

Light power: 1 W

Light Color Temperature (°K): 3000 °K

Maximum suction capacity in free mode (P0): 820 m3/h

Engine power: 275 W

Filter number: 3

Anti-fat filters: Aluminium

Minimum installation distance from gas cooker: 750 mm

Engine housing diameter: 150 mm

Minimum installation distance from electric cooker: 650 mm

Non-return valve: Yes

Performance / Energy Label

Dynamic Fluid Efficiency Class (FDEC): A

Fat filtering efficiency class (GFEC): C

Lighting efficiency class (LEC): A

Annual consumption efficiency (AEC): 59 kWh/a

Dynamic furious efficiency (FDE): 30

Lighting efficiency (LE): 102.3 lux/W

Fat filtering efficiency (GFE): 76.6 %

Air flow at minimum speed (Qmin): 334 m3/h

Air flow at maximum speed (Qmax): 567 m3/h

Air flow at intensive speed (Qboost): 788 m3/h

Weighted sound power output at minimum speed (SPEmin): 49 dB(A)

Weighted sound power output at maximum speed (SPEmax): 61 dB(A)

Weighted sound power output at intensive speed (SPEboost): 69 dB(A)

Time increase factor (F): 1.00

Energy efficiency index: 5

Air flow measured in the maximum efficiency condition (Qbep): 438 m3/h

Air pressure measured in the maximum efficiency condition (Pbep): 434 Pa

Electric power absorbed in the maximum efficiency condition (Wbep): 176 W

Nominal power of the lighting system (WL): 2 W

Average lighting system on the cooking floor (Emiddle): 225 luxembourg

Sound level in the highest configuration (Lwa): 61 dB(A)

Electrical connection

Electrical connection data: 278 W

Voltage: 220-240 V

Frequency: 50-60 Hz

Speed 1

Intake capacity (IEC 61591): 334 m3/h

Rumourity (IEC 60704-2-13): 49 dB(A)

Power: 199 W

Speed 2

Intake capacity (IEC 61591): 439 m3/h

(IEC 60704-2-13): 57 dB(A)

Power: 231 W

Speed 3

Intake capacity (IEC 61591): 567 m3/h

(IEC 60704-2-13): 61 dB(A)

Power: 260 W

Intensive speed

Intake capacity (IEC 61591): 788 m3/h

(IEC 60704-2-13): 69 dB(A)

Power: 280 W

Logistics Information

Product size (mm): 740x895x530

Width: 895 mm

Product depth (mm): 530 mm

Product height (mm): 740 mm
