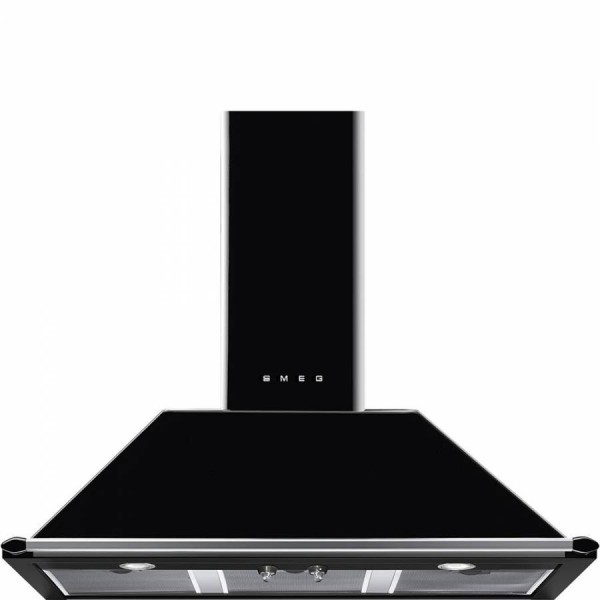

SMEG KT100BLE Decorative Wallet Victoria Black 100 cm A

Type

Family: C

Type: Decorative mural

Width hood: 100 cm

Filter: Expulsion

Aesthetics

Aesthetic: Victoria

Design: Trapezi

Material: Material Painted

Type: Satinate

Commands

Command control: Hands

Manopole: Victoria

No knobs: 2

Color knobs: Stainless steel effect

Programs / Functions

Speed number: 3

Intensive speed: Yes

Technical characteristics

Number of lights: 2

Type of Light: LED LED

Light power: 2 W

Light Color Temperature (°K): 3000 °K

Maximum suction capacity in free mode (P0): 820 m3/h

Engine power: 275 W

Filter number: 3

Anti-fat filters: Aluminium

Minimum installation distance from gas cooker: 750 mm

Engine housing diameter: 150 mm

Minimum installation distance from electric cooker: 650 mm

Non-return valve: Yes

Performance / Energy Label

Dynamic Fluid Efficiency Class (FDEC): A

Fat filtering efficiency class (GFEC): C

Lighting efficiency class (LEC): A

Annual consumption efficiency (AEC): 48 kWh/a

Dynamic furious efficiency (FDE): 34.2

Lighting efficiency (LE): 76.8 lux/W

Fat filtering efficiency (GFE): 81 %

Air flow at minimum speed (Qmin): 334 m3/h

Air flow at maximum speed (Qmax): 606 m3/h

Air flow at intensive speed (Qboost): 787 m3/h

Weighted sound power output at minimum speed (SPEmin): 51 dB(A)

Weighted sound power output at maximum speed (SPEmax): 64 dB(A)

Weighted sound power output at intensive speed (SPEboost): 73 dB(A)

Time increase factor (F): 1.00

Energy efficiency index: 46.2

Air flow measured in the maximum efficiency condition (Qbep): 412 m3/h

Air pressure measured in the maximum efficiency condition (Pbep): 478 Pa

Electric power absorbed in the maximum efficiency condition (Wbep): 160 W

Nominal power of the lighting system (WL): 2 W

Average lighting system on the cooking floor (Emiddle): 169 lux

Sound level in the highest configuration (Lwa): 64 dB(A)

Electrical connection

Electrical connection data: 277 W

Voltage: 220-240 V

Frequency: 50-60 Hz

Speed 1

Intake capacity (IEC 61591): 334 m3/h

(IEC 60704-2-13): 51 dB(A)

Power: 198 W

Speed 2

Intake capacity (IEC 61591): 424 m3/h

Rumourity (IEC 60704-2-13): 58 dB(A)

Power: 227 W

Speed 3

Intake capacity (IEC 61591): 606 m3/h

Rumourity (IEC 60704-2-13): 64 dB(A)

Power: 248 W

Intensive speed

Intake capacity (IEC 61591): 787 m3/h

Roughness (IEC 60704-2-13): 73 dB(A)

Power: 286 W

Logistics Information

Product size (mm): 750x1000x480

Width: 1000 mm

Product depth (mm): 480 mm

Product height (mm): 750 mm
