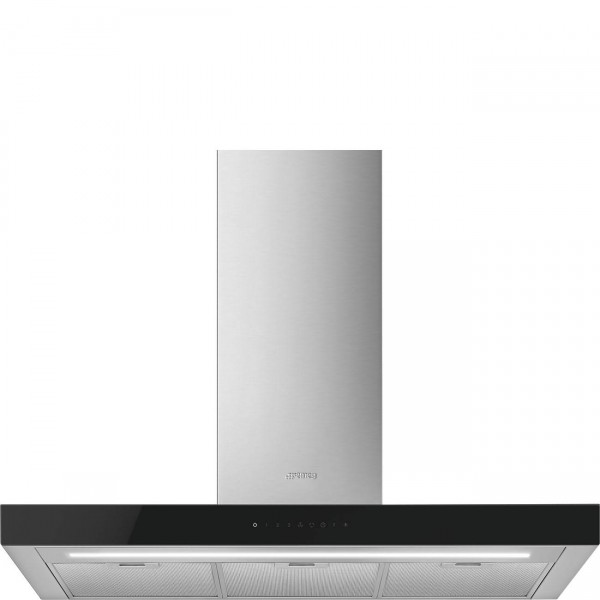

SMEG Universal hood KBT9L4VN

TIPOLOGY
Family: C
Subfamily: Decorative mural
Width hood: 75 cm
Filter: Recirculation
Electronic control: S ESTETICA
Aesthetics: 50 years
Series:: N/A
Design: Inclined
Material: Material Painted
Type Inox: Satinated COMANDI
Command control: Electronic keys
Color led: White PROGRAMMES / FUNCTIONS
Nvelocit: 3 TECHNICAL FEATURES
Ndi luci: 2
Type of Light: LED LED
Light power: 1 W
Light Color Temperature (): 4000
Maximum suction capacity in free mode (P0): 820 m
Engine power: 280 W
Filters: 3
Anti-fat filters: Inox
Carbon filters: S
Filter change indicator: S
Minimum installation distance from electric cooker: 650 mm
Minimum installation distance from gas cooker: 650 mm
Engine housing diameter: 150 mm
Non-return valve: S PRESTATIONS / ENERGY ENERGY
Energy efficiency class (EEC): A+
Dynamic Fluid Efficiency Class (FDEC): A
Fat filtering efficiency class (GFEC): AND
Lighting efficiency class (LEC): A
Annual consumption efficiency (AEC): 36 KWh/a
Dynamic furious efficiency (FDE): 36.6
Lighting efficiency (LE): 68.2 lux/W
Fat filtering efficiency (GFE): 61.1 %
Air flow at minimum speed (Qmin): 333 m
Maximum air flow rate (Qmax): 649 m
Air flow to intensive speed (Qboost): 797 m
Pondered sound power output at minimum speed (SPEmin): 50 dB(A)
Weighted sound power output at maximum speed (SPEmax): 67 dB(A)
Weighted sound power output at intensive speed (SPEboost): 72 dB(A)
Stand-by absorption (Ps): 0.49 W
Energy efficiency index: 39.7
Time increase factor (F): 0.7
Air flow measured in the maximum efficiency condition (Qbep): 421 m
Air pressure measured in the maximum efficiency condition (Pbep): 422 Pa
Electric power absorbed in the maximum efficiency condition (Wbep): 135 W
Nominal power of the lighting system (WL): 2 W
Average lighting system on the cooking floor (Emiddle): 150 luxuries
Sound level in the highest configuration (Lwa): 67 dB(A) ELECTRICAL COLLEGATION
Electrical connection data: 282 W
Current: 1 A
Voltage: 220-240 V
Frequency: 50-60 Hz VELOCIT 1
Intake capacity (IEC 61591): 333 m
Rumorosit (IEC 60704-2-13): 50 dB(A)
Power: 198 W VELOCIT 2
Intake capacity (IEC 61591): 477 m
(IEC 60704-2-13): 59 dB(A)
Power: 246 W VELOCIT 3
Intake capacity (IEC 61591): 649 m
Rumorosit (IEC 60704-2-13): 67 dB(A)
Power: 286 W VELOCIT INTENSIVA
Intake capacity (IEC 61591): 797 m
Rumorosit (IEC 60704-2-13): 72 dB(A)
Power: 294 W ACCESSORIES Equipment Included
Remote control: S
Motorized opening: S OPTIONAL ACCESSORIES
Active carbon filter kit: FLTSI
Pair of fireplaces (2 pieces) size 550 min 1035 max (263 * 257) KFAB75RD ROSSA: KITCMNFABRD

VERSIONS

KFAB75CR: Cream
KFAB75WH: White
KFAB75BL: Black
