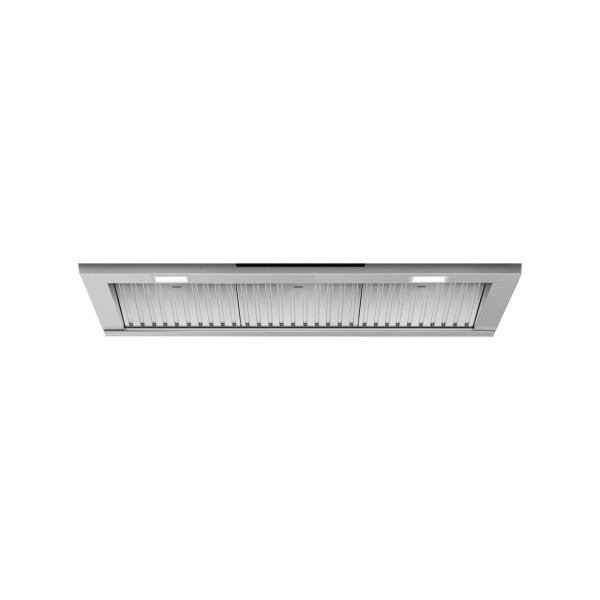

SMEG Design KSGT94X Recessed hood cm. 90 - stainless steel

Type
Family:C
Type:Integrated in group
Width hood:90 cm
Filter:Expulsion
Electronic control:Yes
EAN Code:8017709328368

Aesthetics
Color:Stainless steel
Finish:Satinate
Aesthetic:Universal
Design:Missing
Material:Inox
Type:Satinate
Command control: Touch control back-lighted White
Color led commands: White

Programs/functions
Speed number:3
Intensive speed:Yes
Air spare function 24 h:Yes
Time programming options:Automatic shutdown
V-Condense System:Yes
Auto-Vent 2.0:Yes

Technical characteristics
Number of lights:2
Type of Light:LED LED
Light power:2,3 W
Adjustable light intensity:Yes
Light Color Range (°K):2700° - 4000° °K
Maximum suction capacity in free mode (P0):820 m3/h
Engine power:275 W
Filter number:3
Anti-fat filters:Inox
Filter change indicator:Yes
Minimum installation distance from gas cooker:650 mm
Minimum installation distance from electric cooker:500 mm
Engine housing diameter:150 mm
Non-return valve:Yes

Benefits
Energy efficiency class (EEC):A
Dynamic Fluid Efficiency Class (FDEC):A
Fat filtering efficiency class (GFEC):B
Lighting efficiency class (LEC):A
Efficiency of annual consumption (AEC):49 kWh/h
Dynamic furious efficiency (FDE):31.7
Lighting efficiency (LE):37.0 lux/W
Fat filtering efficiency (GFE):88.9 %
Air flow at minimum speed (Qmin):256 m3/h
Air flow at maximum speed (Qmax):616 m3/h
Air flow at intensive speed (Qboost):703 m3/h
Weighted sound power output at minimum speed (SPEmin):49 dB(A)
Weighted sound power output at maximum speed (SPEmax):71 dB(A)
Weighted sound power output at intensive speed (SPEboost):71 dB(A)
Stand-by absorption (Ps):0.49 W
Time increase factor (F):0.9
Energy efficiency index:52.1
Air flow measured in the maximum efficiency condition (Qbep):347 m3/h
Air pressure measured in the maximum efficiency condition (Pbep):460 Pa
Electric power absorbed in the maximum efficiency condition (Wbep):140 W
Nominal power of the lighting system (WL):5 W
Average lighting system on the cooking floor (Emiddle):170 lux
Sound level in the highest configuration (Lwa):71 dB(A)

Electrical connection
Electrical connection data:280 W
Voltage:220-240 V
Frequency:50-60 Hz
Power cord length:1500 mm

VELOCITY 1
Intake capacity (IEC 61591):256 m3/h
Rumourity (IEC 60704-2-13):49 dB(A)
Power:164 W

VELOCITY 2
Intake capacity (IEC 61591):407 m3/h
Rumourity (IEC 60704-2-13):65 dB(A)
Power:207 W

VELOCITY 3
Intake capacity (IEC 61591):616 m3/h
Rumourity (IEC 60704-2-13):68 dB(A)
Power:232 W

INTENSIVE HEALTH
Intake capacity (IEC 61591):703 m3/h
Rumourity (IEC 60704-2-13):71 dB(A)
Power:237 W

Logistics information
Dimensions (LxPxA): 862 x 290 x 361 mm
Packaging dimensions (LxPxA): 1080 x 470 x 420 mm
Net weight:9.75 kg
Gross weight:13,30 kg

Optional
Coal wire

Turbo function
The Turbo function allows to operate the hood at maximum power, to speed up the elimination of the most persistent odors.

V-Condense System
V-Condense System is a system that prevents the drop of condensation droplets that you could create on the hood under certain conditions of use.

Air exchange 24 h
The 24 h air exchange function creates a continuous recirculation of the air, activating the engine at a minimum speed with an aspiration of 10 min. every hour for 24 hours.

Automatic shutdown
The Automatic Shutdown option allows you to schedule the time of deactivation of the hood that will continue to purify the air until it will automatically turn off.

Dimmering
Adjusting light intensity.

Anti-fat filters
Anti-fat filters clean the air from the fats of cooking. They are easily dismantled for their periodic cleaning.

Adjustable lights
Possibility to adjust the color temperature of the lights from warm white to cold white.

Light
The hoods are equipped with LED lamps. The light can be lit independently of the suction fan and thus allow to illuminate the worktop.

Light signal
A light signal lights up when you need to replace active carbon filters.
