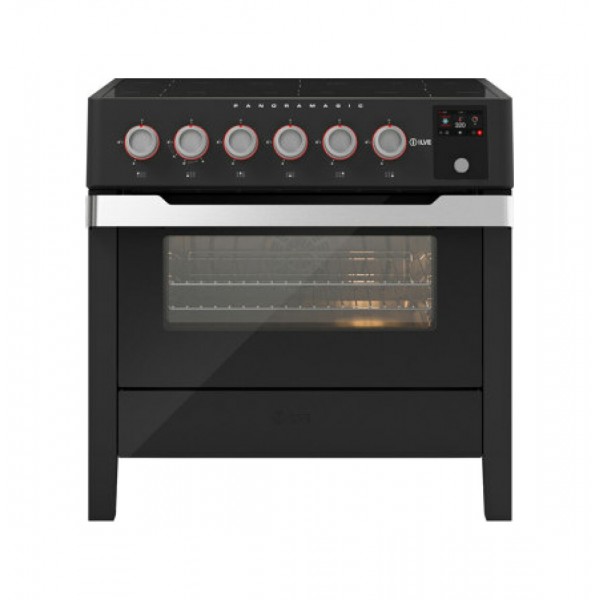

Kitchen PM09-MK by Ilve

The kitchen PM09-MK of Ilve is part of the panoramagic line, a collection fromstrong and functional aesthetic, played on iconic elements, shapes and colors, as well as on a recognizable design and refined references to the brand: the design of the cast iron grids and the shape of the red marking on the knobs, recall the hexagonal motif of the ILVE logo.

Characterized by inclined dashboard with large handles with integrated ignition and integrated led lighting, Panoramagic cooking blocks find an additional aesthetic strength in the front handle.

The PM09-MK cooking block, made of matt black color with knobs and satin handrails, has a width of 90 cm and integrates electric oven capacity of 97 lt (OV80 E3 TFT S) with 4.3 inch touch screen that allows constant control and monitoring of all furnace functions, with a induction hob 6 zones (ref. SME09S3); to complete the cooking block it is also possible to choose, among the accessories, the panel boxes stainless steel and/or hood APM90/MK, with refined and elegant aesthetics.

COTTURAL PLAN
Skills
• Zone A Ø 145 mm 2.2/1.4 kW
• Zone B Ø 180 mm 3/1.85 kW
• Area C Ø 210 mm 3.7/2.3 kW
• Induction zone Bridge Ø 180+180 mm (B+B) 3 kW/1.85 kW + 3 kW/1.85 kW

OV 80 E3 TFT S
General characteristics
• Electronic oven 80 cm
• Energy class A+
• Number of functions 15
• Operating temperature 30-320°C
• Display 4.3'' full touch
• Electronic temperature control
• Box heated
• Door and drawer with soft closing system
• Cooking probe
• Double internal light
• Backlit led knobs
• Cold triple glass door (EN60335-2-6-11.101)
• Cooling tangential ventilation
• Child safety

Features cavity
• Mould with easy clean enamel
• Internal dimensions 64.5x36.5x41 cm
• Capacity 97 L
• Drained steam with dry or wet cooking option
• Reduced grill resistance
• Diagonal turntable
• Thermostat with electronic probe

Functions
• Pizza
• Freezing
• Multiple ventilated cooking
• Wet multiple ventilated cooking
• Intensive cooking
• Wet intensive cooking
• Ventilated grilling
• Closed door grilling
• Cover from above
• Over wet cooking
• Cooking under
• Under wet cooking
• Static normal cooking
• Wet static normal cooking
• ECO cooking

Consumption
• Maximum absorption 2.75 kW
• Higher electrical resistance 1200 W
• Lower electrical resistance 1350 W
• Electric Grill 2150 W
• Circular resistance 2100 W

CAPPA APM90 (OPTIONAL)
General characteristics
• Automatic button for filter cleaning
• Size hole fireplace exit 15 cm
• Maximum power 345W
• Energy class A
• AISI 304 stainless steel case (Stainless only)
• Stainless steel filters
• Intake 1000 m3/h
• Optional remote control system
• 4 speed controls (1-2-3-Intensive)
• Available in a vacuum or filter version
• 13W led bar

Measures
• L 900 x P 560 mm

KITCHEN FINISHES AND CAPPA
• Black matt

MANOPULAL AND COURCES
• Satinated

OPTIONAL ACCESSES
• APM90/MK hood
• AM4-90 mixer panel

Notes:
- In the case of cooking stove with Fry-Top plate, for standard use of the two burners replace the Fry-Top with the KGRFT003 grids.
- The APM hood offered among the accessories is meant with matt black finish; contact us if you want to combine the APM hood with stainless finish.
- For more information about the product, or for a customized quote, please feel free to contact us!
