Reduced price

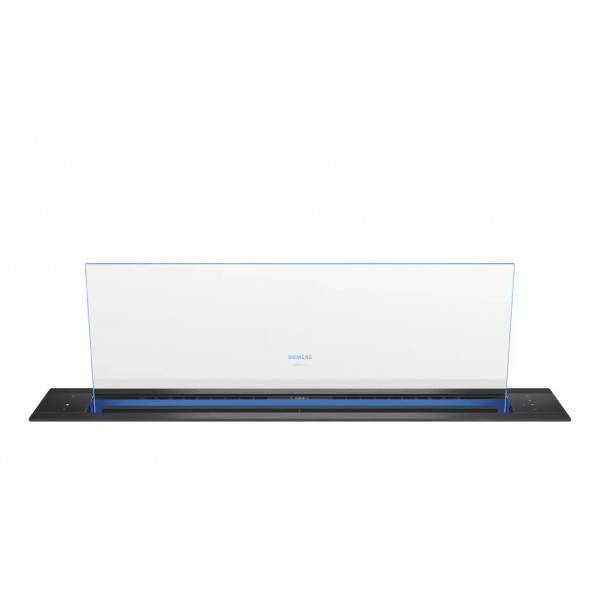

Siemens Studio Line iQ700 Flat telescopic hood 90 cm clear glass LD98WMM66

Reference: LD98WMM66
EAN:

€4,173.62

€3,339.00 Save 20%

Extra options

Additional Services Shipping

NO SERVICES (

Free

) You will be calculated at checkout stage the shipping cost.

Standard Delivery is a delivery made on working days from 08:30 to 18:00. Provides delivery on the road floor - to the address provided by the customer - for any product purchased on the BHI Store.

Orders with Standard Delivery are entrusted by BHI Store to partner agreed for delivery. If you're not at home at the courier's pass the same leaves a notice and considers the delivery the next working day.

At the discretion of the Courier in charge of carrying out delivery at home.

WHERE TO THE FIRST INSTALLATION (

€89.00

) Delivery to the floor means without use of external stairs and/or platforms, the use of a different tool will be charged to the customer. The installation does not include hydraulic, electrical and/or carpentry works "mobile modification " but the sole connection of the electrodomestic to the utilities.

DELIVERY TO THE CAP PLANE (

€69.00

) Delivery to the floor means without use of external stairs and/or platforms, the use of a different tool will be charged to the customer.

Previsory option

WITHOUT PRIOR NOTICE BY TELEPHONE (

Free

) In case of absence of the customer, redelivery costs will be applied

TELEPHONAL TRAINING (

€2.00

) In case of delay or delivery by the courier no delivery charges will be applied

Other options

WEEE collection "referring to the courier cost" (

€39.00

) The cost of the service does not refer to disposal, but to the return journey of the courier for delivery to our warehouse of the product to be disposed of

Total option price

Tax included

Siemens Studio Line iQ700 Flat telescopic hood 90 cm clear glass LD98WMM66

€135.00

Extend the technical service for another 3 years at the expiry of the 24 months of guarantee. | Info

Quantity

Guaranteed security on all purchases

Safe shipping via Espresso Courier

Refund warranty within 30 days

Estimated Shipping Costs

Shipping Costs

€35.00

Shipping Time

Shipments Islands applied supplement during Check OUT

Want to check another country or courier?

Hai domande o dubbi? Non hai trovato il prodotto STUDIO LINE che cercavi?

Scrivici

Chiamaci

Description
to choose us

The integrated hood in the icingdraftAir plane only appears when it is activated and thanks to the new technology Guided Air offers high-level performance and effectiveness.

Excellent suction performance, regardless of the position of the pots on the stove, thanks to Guided Air and iQDrive technologies.

Excellent suction performance, regardless of the position of the pots on the stove, thanks to Guided Air and iQDrive technologies.

The new icingdraftAir hood releases the view on your openspace. The Guided Air technology creates an air curtain back to the glass ensuring exceptional aspiration performance without annoying noise.
glazedraftAir - different installation solutions to make the most of the space.
glazedraftAir - different installation solutions to make the most of the space.

Make the kitchen exactly as you want it. Thanks to icingdraftAir, the engine can be installed in different ways, to make the most of the space within your kitchen.
Create your style in the kitchen – emotionLight Pro.

Technical data

Main Features

Width 90 cm
The perfect solution for installation in an island or semi-island kitchen solution
IQdrive brushless motor: highly efficient and silent technology
Expulsion or air recirculation operation
Clean Air Plus recirculation kit is required for recirculation operation
Dish-washable metal filters
Saturation indicator for metal and activated carbon filters

Control system

touchControl for power control and lighting
3 selectable speeds plus 2 intensive speeds
Intensive stadium with self-prison after 6 minutes
Post-cooking function: self-suspecting after 10 minutes from the end of cooking
The glass panel can be easily removed and cleaned.

Connectivity

HomeConnect
cookConnect System: control of the hood through the induction piano electronics
Range function: available via Home Connect
Quiet operation: available via Home Connect

Benefits

Air extraction capacity: with normal operation 519 m3/h, intensive 833 m3/h according to EN 61591
Rumourity according to EN 60704-3 and EN 60704-2-13 air expulsion:
Max. normal position: 62 dB(A) re 1 pW.
Intensive: 71 dB(A) re 1 pW.
Sound power min./max. at normal power level: 41/62 dB (A) re 1 pW*
With the Clean Air Plus recirculation kit (available as an accessory) your devices reach:
Extraction speed in recirculation mode:
Max. normal use: 456 m3 / h
Intensive: 596 m3 / h
Noise level in recirculation mode:
Max. normal use: 66 dB (A) re 1 pW
Intensive: 71 dB (A) re 1 pW

Energetic Label

Energy efficiency class: A (in a scale of energy efficiency classes from A+++ to D)
Annual energy consumption (kWh): 37.8 kWh*
Engine energy efficiency class: A
Energy efficiency class of lighting:
Energy efficiency class of the fat filter: C

Details for installation

Height of the hood from the top 250 mm
Size (HxWxD): 709 x 912 x 140 mm
Recessed dimensions (AxLxP): 703 x 854 x 123 mm
Electrical connection cable 1.3 m
Air output diameter: 150 mm
Electrical consumption: 300 W

Overview of technical information

General

Width (cm)	90 cm
Product depth (mm)	140 mm
Category	Built in
Air circulation	Convertible
Maximum air recirculation power (m3/h)	472 m3/h
Type of controls and indicators	touch control
Power consumption standby/display mode off	0,4 W

Connectivity

Home Connect
Home Connect Features	en: Remote Monitoring and Control
Connectivity type	en: Wi-Fi

Production

Air exit diameter (mm)	150 mm
Colour	black
Fat Filter Material	Washable steel
Type Fatty filter	multilayer
Type of installation	Compact
Body Material	glass
Engine positioning	Integrated motor in the hood body
Number of engines	1
Air circulation	Convertible

Connection

Electrical connection data (kW)	300 W
Electric power cord length (cm)	130 cm
Frequency (Hz)	60; 50 Hz
Total engine power (W)	300 W
Voltage (V)	220-240 V

*In accordance with the Delegate Regulation (EU) No 65/2014

Reference LD98WMM66

In stock 200 Items
